🛠 Join the Journey – This Project is Still in Progress! 🛠

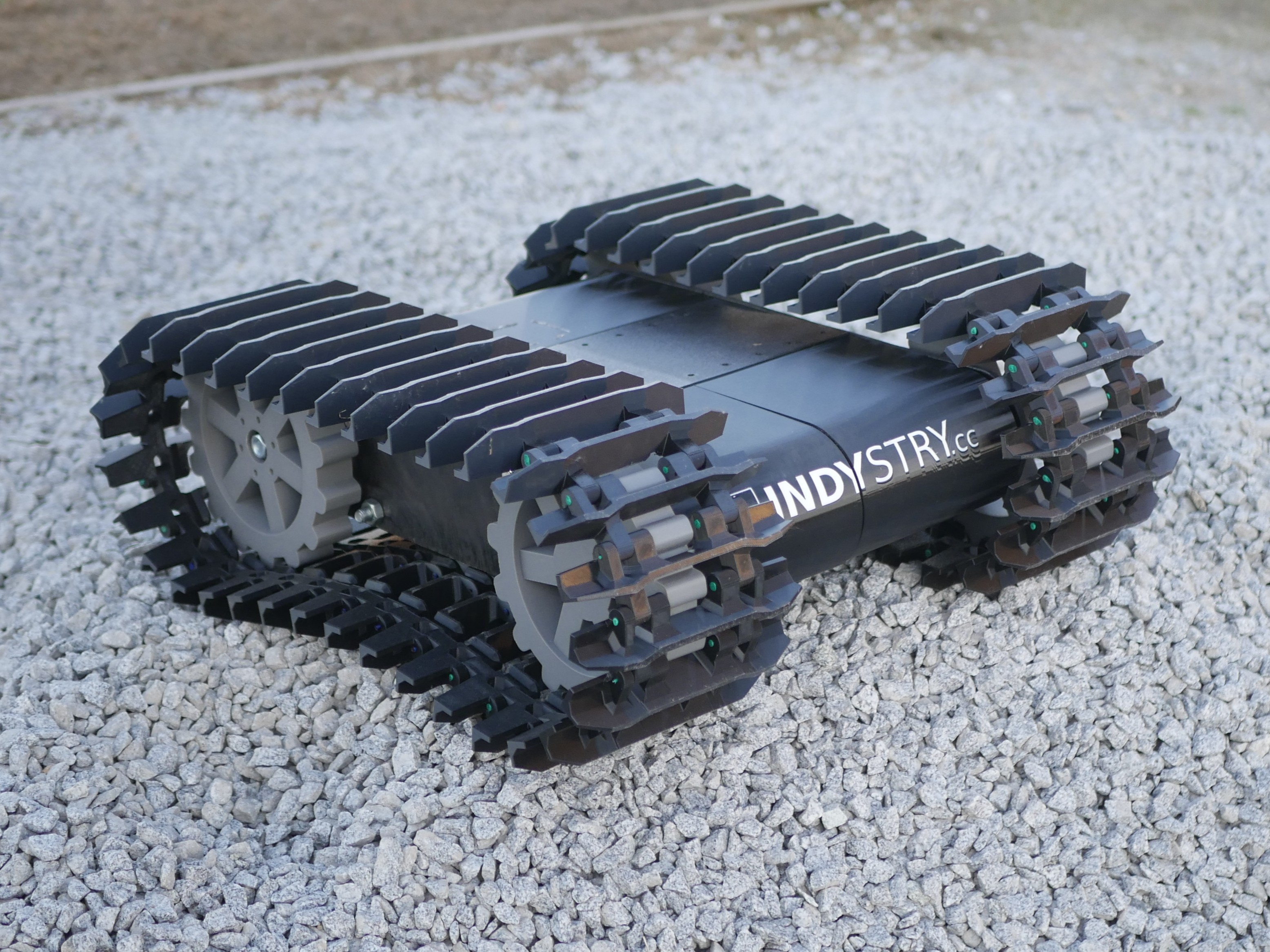

When you purchase this chassis, you’re not just getting a 3D-printable design – you’re getting lifetime access to all future upgrades and improvements! This project is an all-terrain robot chassis, designed for autonomous navigation using GPS RTK. It’s modular, printable, and ready for customization with your own electronics and motors.

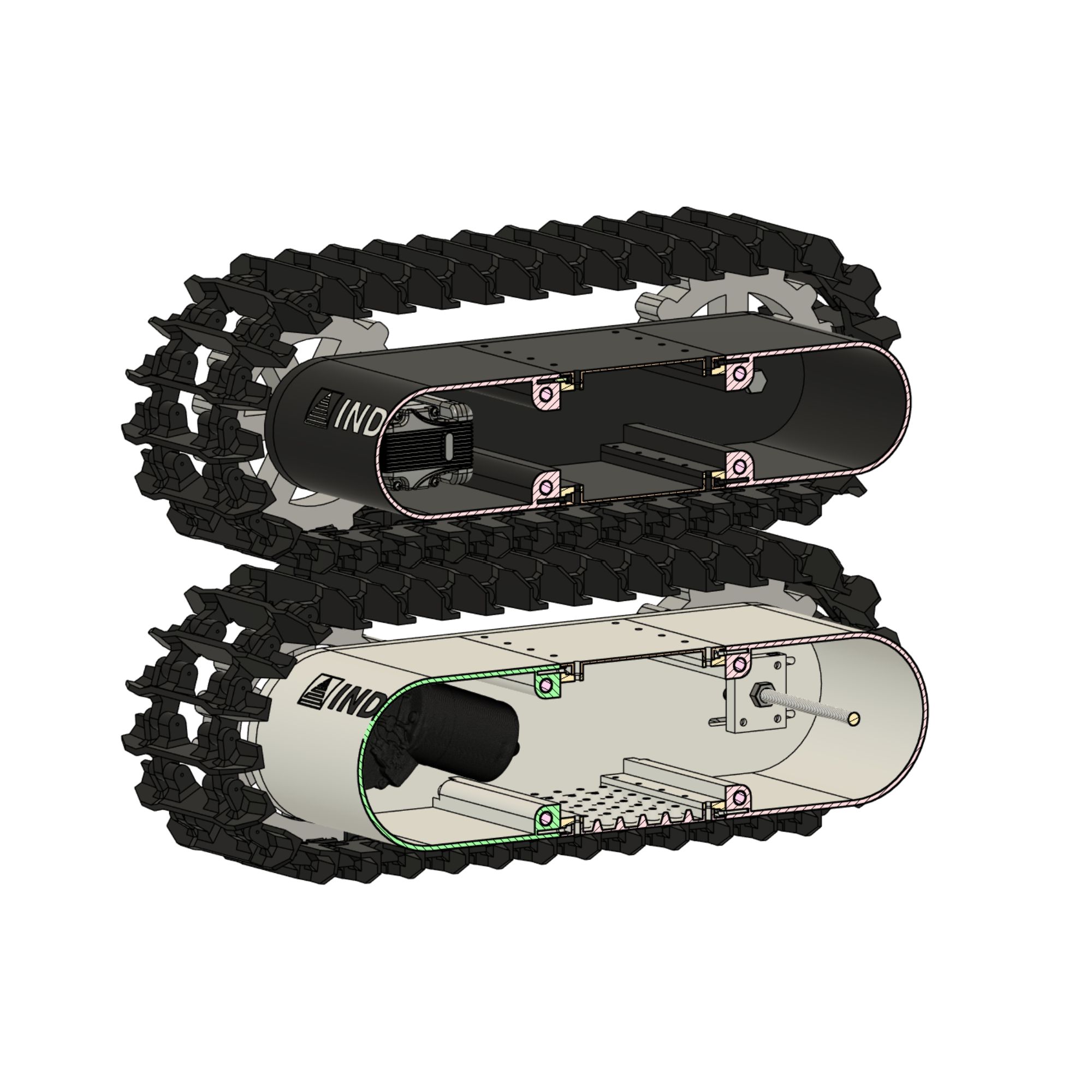

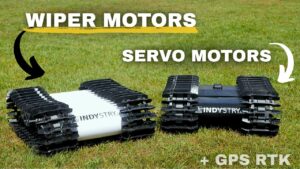

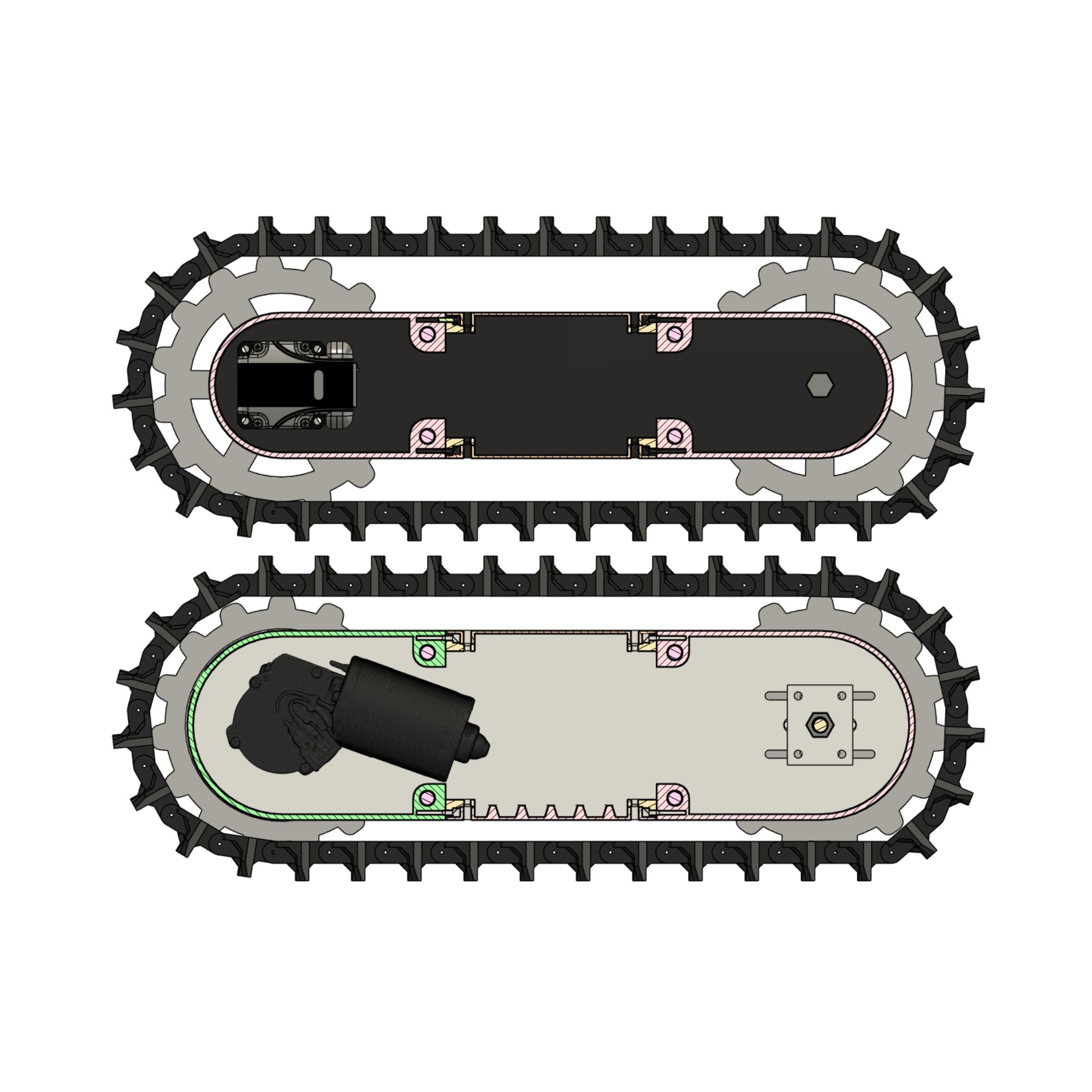

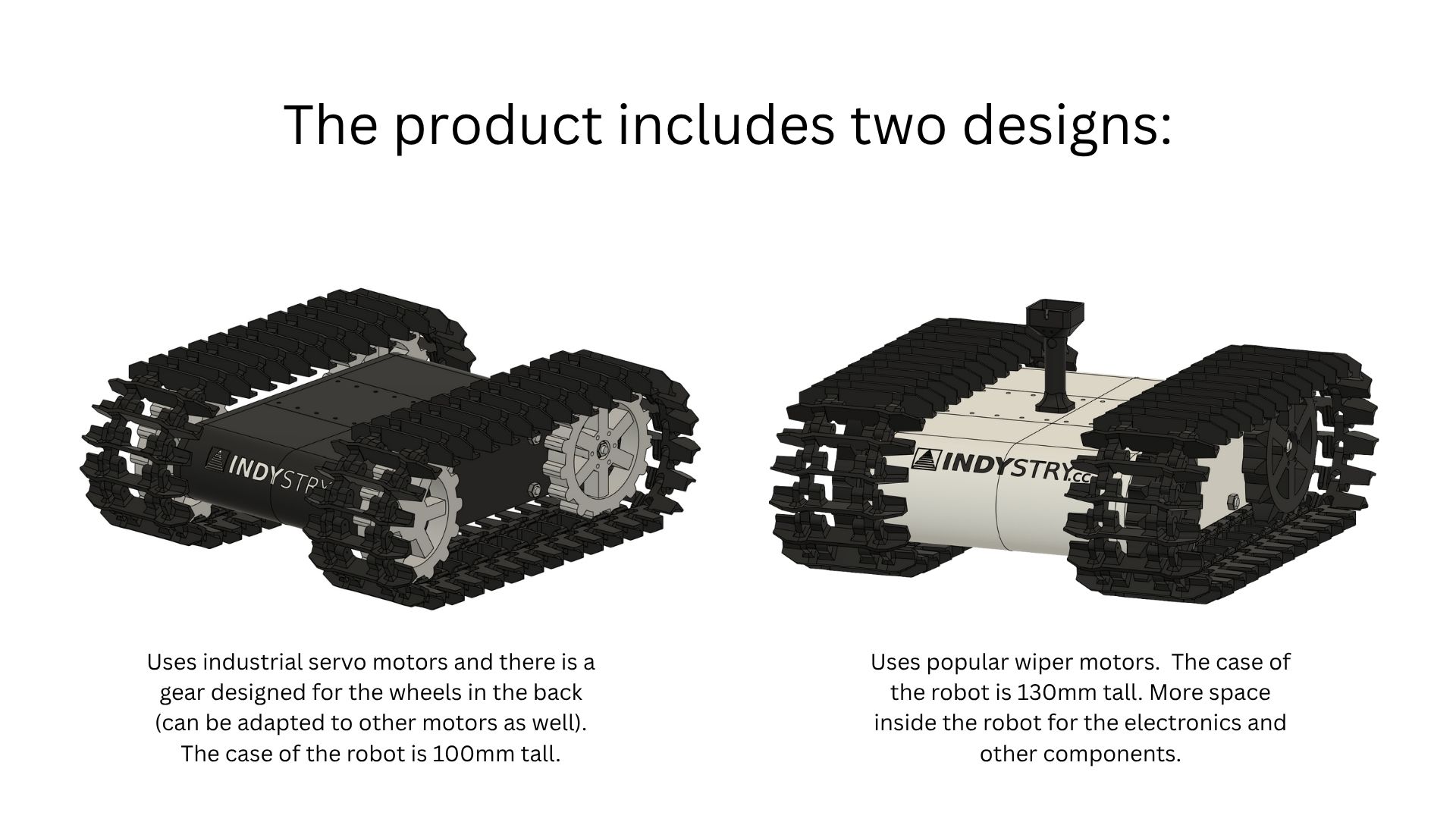

The project includes two very similar but different designs:
- Smaller, thinner version designed around industrial servo motors with a gearbox.

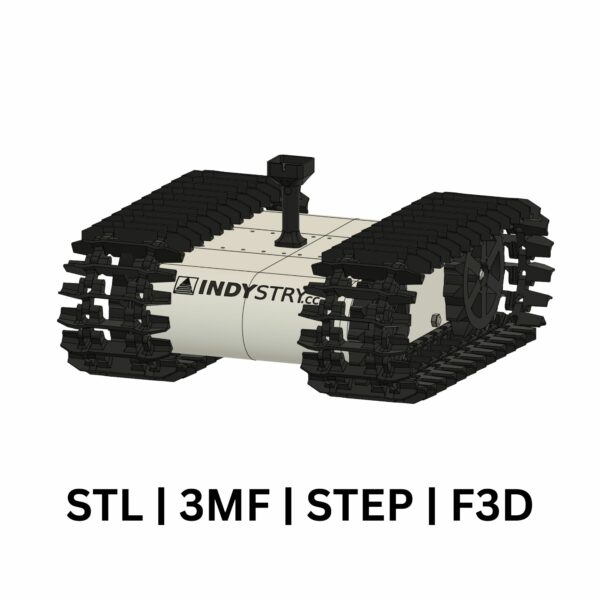

- Thicker, more spacious design that uses windshield wiper motors and has extra space for electronics.
This is a digital product!!! After purchase, you will receive an email with all the files.
What’s Included?

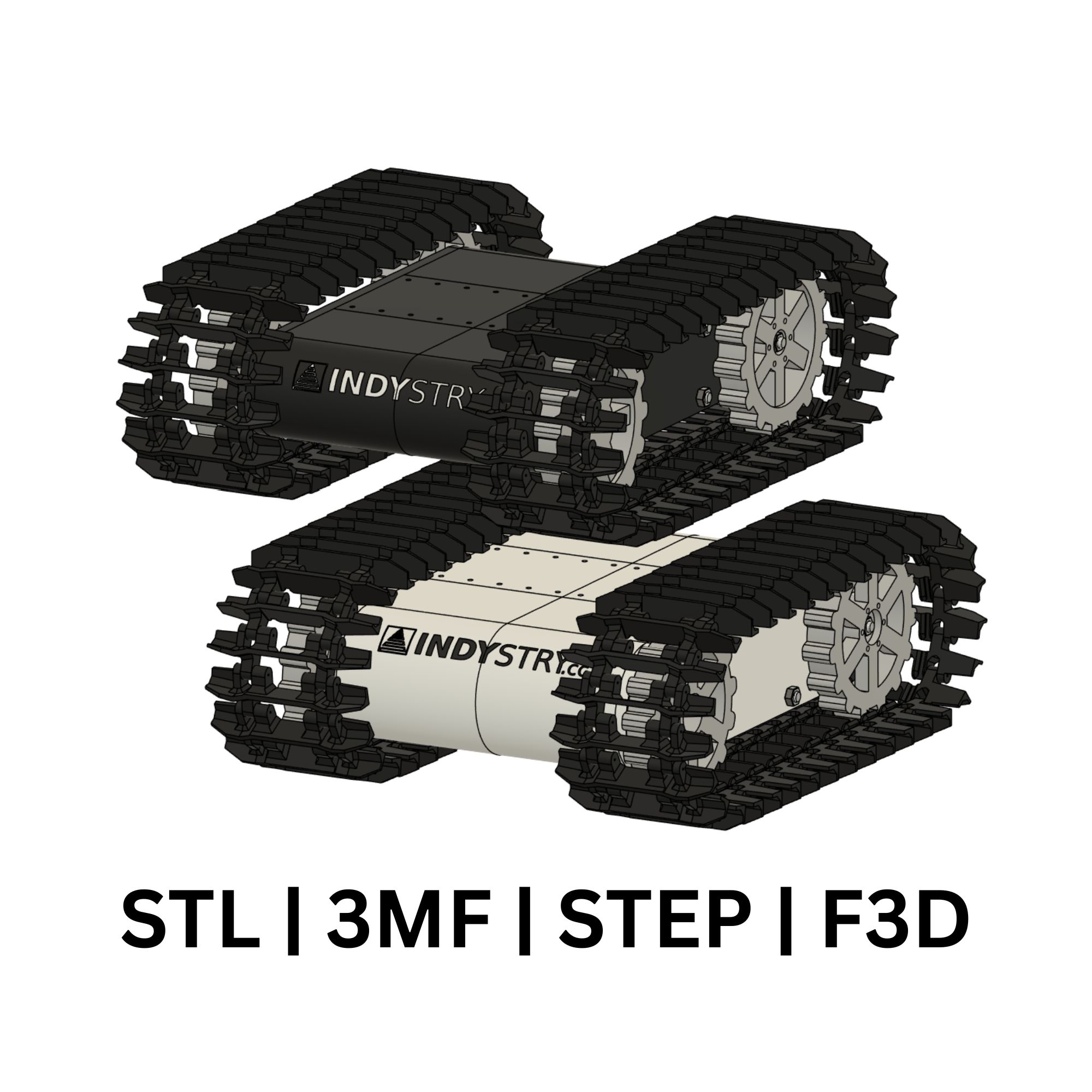

📂 Digital Files in Multiple Formats:
✅ 3MF (Multi-Material Support) – raw files + Bambustudio file with all the parts prepared for printing on multiple plates
✅ STL
✅ STEP – full assembly
✅ F3D – full assembly
✅ PDF technical drawing with dimensions of the plywood plate
Chassis Features:
🔹 Fully 3D printable – No need for complex machining!
🔹 Modular design – Replace parts without reprinting the whole chassis.
🔹 Electronics-ready – Space for Raspberry Pi, batteries, and custom PCBs.
🔹 Durable & customizable – Thanks to 10mm threaded rods the chassis is durable and thanks to all the screw mounted panels and elements it’s easy to adjust to your needs.
Future Upgrades & Improvements:
🔧 Motor Mounting Enhancements – Adjustments for better compatibility with different motors.
⚙️ Custom Gearbox Design – Improved torque and efficiency for servo motors.
🔄 Structural Reinforcements – Stronger side panels, improved track tensioning. Bigger design alternative to fit wiper windshield motors.
🔥 Support the development of this project and get lifetime access to all future updates!
