📐 Build Your IndyMill with Confidence
The definitive 48-page blueprint used by hundreds of makers to successfully build their own high-precision CNC machine.
🚀 2,000+ Builders Globally
✅ Verified Engineering Drawings
⚡ Instant PDF Delivery
✅ Verified Engineering Drawings
⚡ Instant PDF Delivery
Don’t Guess. Build It Right the First Time.
🔧 Precision Mechanical Setup

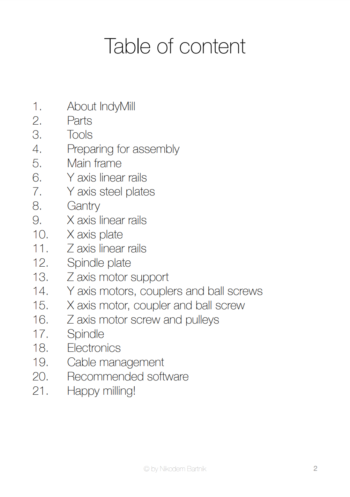

Mechanical alignment is the difference between a CNC and a paperweight. This guide covers 21 logical sections including gantry assembly, lead screw alignment, and rigid frame construction.
⚡ Fail-Safe Electronics
Wiring stepper drivers and limit switches shouldn’t be a guessing game. Get full schematics for the controller, power supply, and motor shielding to prevent EMI issues.
What you get in the 48-page manual:
📋
Unified BOM
A complete “Shopping List” with links to parts, saving you hours of sourcing.
📐
60+ Drawings

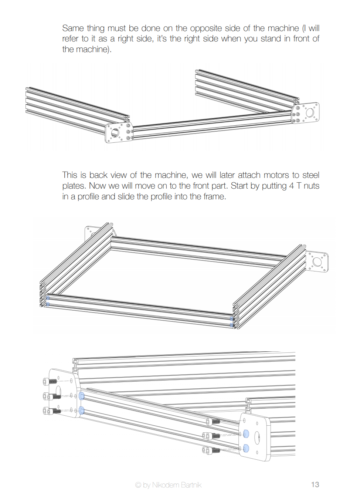

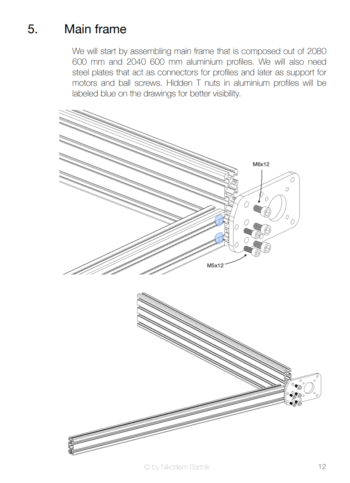

High-resolution isometric and orthographic views of every sub-assembly.
🔌
Wiring Guide
Step-by-step controller setup, motor tuning, and firmware configuration.
Technical Details
| Document Length | 48 High-Detail PDF Pages |
| Complexity | Intermediate (Step-by-Step Guide) |
| Format | Searchable Digital PDF |
| Creator Support | Direct Support via IndyMill Community |
Ready to Build?
Get instant access to the guide that has turned thousands of makers into CNC owners.
🛡️ Secure Checkout
💾 Lifetime Updates
📧 Instant Email Delivery
💾 Lifetime Updates
📧 Instant Email Delivery
Visit the IndyMill Project Page for more free resources and community support.
Arvin Singh –
Super easy to follow and the images are very descriptive. Without this I would’ve wasted hours messing up the assembly.
Bruce! –
I collect manuals since I may not get to a project anytime soon. Pluss, if the zombie apocalypse comes and YouTube is infected first, I’ll have this .pdf to build my own IndyMill, and use it to save the human race from extinction.
Easily worth the $10 US. If nothing else, it gives Nik a couple bucks to keep up the good work!
Michael (verified owner) –
Good instructions. Compact instructions with everything in one place.
With everything else provided it is not really necessary but it makes life a little bit easier.
